VS4000 – FINGERPRINT SCANNER

Home/Time Attendance/VS4000 – FINGERPRINT SCANNER
­

VS4000 – FINGERPRINT SCANNER

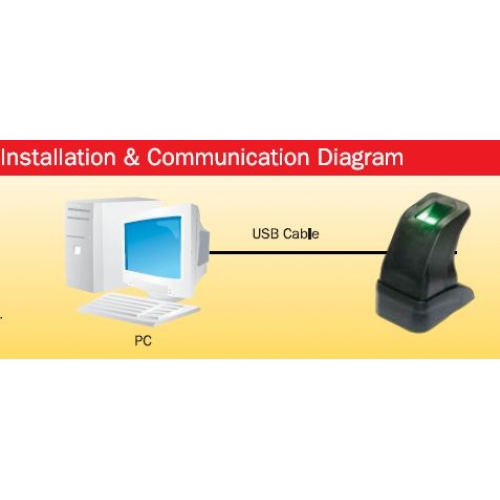

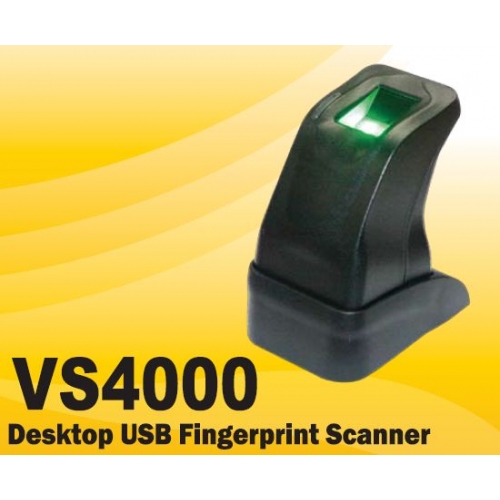

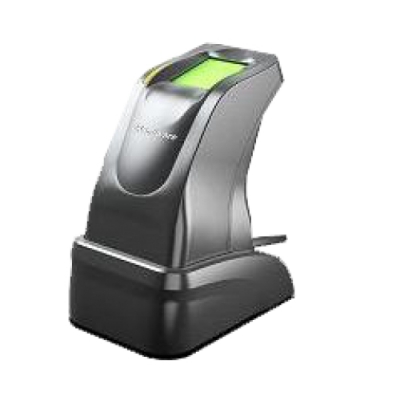

VS4000 is an intelligent USB fingerprint scanner used to capture live fingerprints. It calibrates and encrypts the fingerprint images to ensure high quality and high security images that are transferring to computer.

VS4000 is applied as fingerprint scanning device for various applications such as Desktop PC Security, Mobile PCs, Custom applications, Point-of-sales system and etc.

Download Brochure

PDF FORMAT | JPG FORMAT

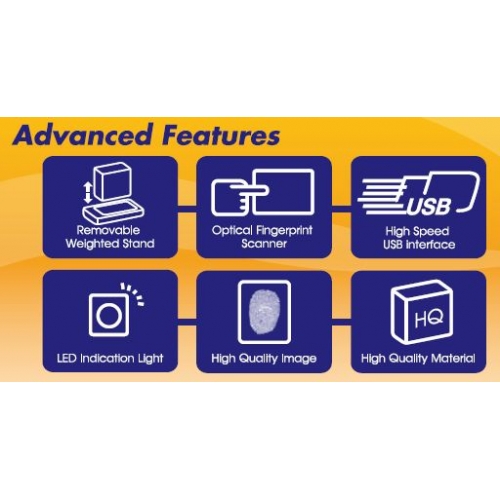

Features & Benefits

  • Small form factor
  • Excellent scan quality
  • Encrypted fingerprint data
  • Latent print rejection
  • Rotation invariant
  • Rugged
  • Works will with dry, moist or rough fingerprints
  • Compatible with Windows 7, XP, 2000, ME, 98 NT4.0 and Windows Server 2000, 2003
Category:

Product Description

Your Name (required)

Your Email (required)

Interested Product (required)

Your Message



Additional information

Pixel Resolution

500 dpi

Scan Capture Area

14mm (nom. Width at center)
18mm (nom. Length)

8-bit Grayscale

256 levels of gray

Compatible

USB 1.0, 1.1 and 2.0 (Full Speed) Specifications

Supply Current

Scanning 190mA (Typical)
Idle mode 140mA (Typical)
Suspend mode 1.5mA 9Maximum)

Supply Voltage

5.0V +- 5% supplied by USB

Standard Functions

ID Card, Automatic Status Switch, Self-servece Query, Work Code, T9Input, 9 digit User ID, DLST, Scheduled-bell

ESD Susceptibility

>1.5kV, mounted in case

Scan Data

8-bit grayscale

Dimension

53mm x 80mm x 66mm

Power Requirement

12VDC
Sleeping current <50mA
Working current <400mA

Operating Temperature

0 C – 40 C

Storage Temperature

10 C – 60 C

Operating Humidity

20% – 80%

Storage Humidity

20% – 90% non-condensing

Standard Compliance

FCC Class B, CE, ICES, BSMI, MIC, USB, WHQL
