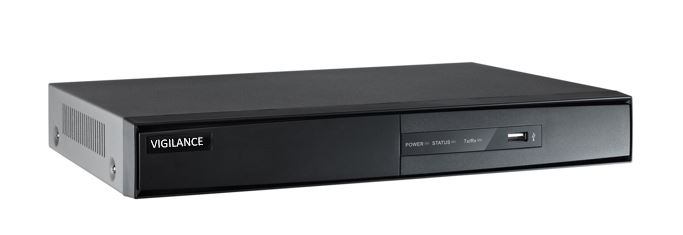

4CH Tribrid 720P Turbo Digital Video Recoder
| Video compression | H.264 |
|---|---|
| Analog and HD-TVI video input | Analog and HD-TVI video input |
| Supported camera types | 720P/25, 720P/30 |
| Supported AHD input | 720P/25, 720P/30, CVBS |
| IP video input | 1-ch, up to 960p resolution |
| Audio input / Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| HDMI / VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Audio Input | 1-ch, RCA(Linear, 1ohm) |
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Encoding resolution | 720P/WD1/4CIF/VGA/CIF |
| Frame rate | 1/16fps, real time frame rate |
| Video bitrate | 32kps to 4Mbps |
| Stream type | Video/Audio |
| Dual-stream | Support |
| Audio compression standard | G.711u |
| Audio bitrate | 64kbps |
| Synchronous playback | 4-ch |
| Hard Disk | 1 SATA interface |
| External Interface | 1x 10M / 100M self-adaptive Ethernet interface |
| USB port | 2× USB2.0 |
| Power supply | 12V DC |
| Consumption (without hard disks) | ≤ 8W |
| Working temperature | -10 ºC ~+55 ºC (14 ºF ~ 131 ºF) |
| Working humidity | 10% ~ 90% |
| Chassis | 260mm chassis |
| Dimensions (W × D × H) | 260 × 222 × 45mm |
| Weight (without hard disks) | ≤ 1Kg (2.2lb) |
